Wiring the relays into the switch panel
ldhiii
Member Posts: 3 ✭
I have a 2015 Sun deck pro sport. The two relay switches corroded and I had someone try to replace them but pretty sure he messed up. I have some electrical issues with the switches and the accessories. Right now all accessories work with their switches but the master switch doesn’t cut the power the the rest of the switches. Basically I’m trying to find out how to correctly wire these relays into the switch panel and wiring harness?
Comments
-

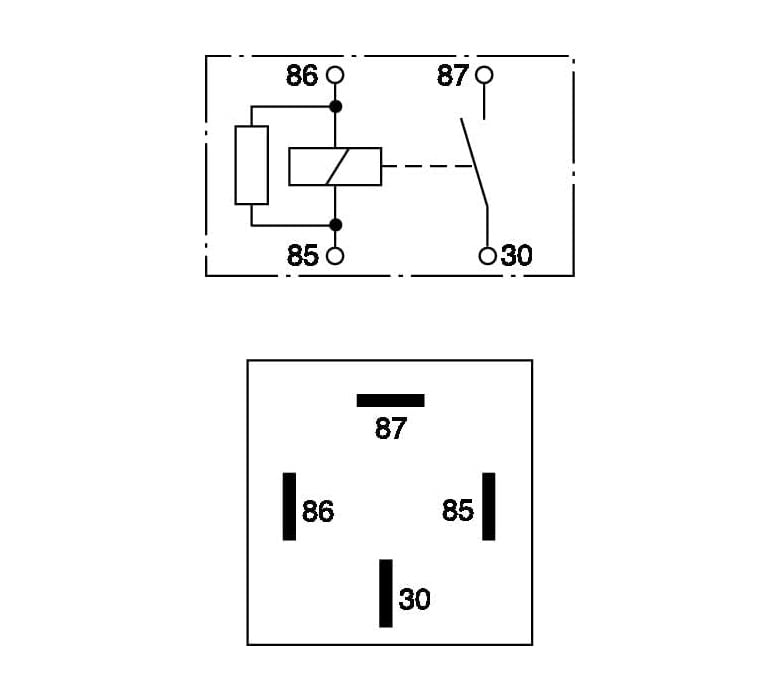

The relay should be numbered at the blades. 85 is a ground, 86 should be switched positive from the master, 30 should be hot all the time, 87 should go to the switches when the relay is energized. I'm new to the site and don't know how to post an attachment. You can search the internet for diagrams by searching 30 amp relay wiring.
-
-
So I run positive from the battery to 30. Ground from battery to 85. 86 to the master switch wire so that when I flip the master switch power will flow to the relay? 87 to the positive off the wiring harness headed to the components (lights, horn, etc)?
-
Correct
